Overview:


ARINC 664 test instruments can be used in test and simulation applications that are required to transmit and receive data over the ARINC 664 avionics databus. Ours instruments use small form-factor pluggable transceivers (SFP) and support copper or fiber optic physical network interfaces.

Using an FPGA based architecture, with multiple embedded processors, the ARINC 664 instruments provide onboard support for upper layer protocol processing (A653, UDP, IP) and utilize DMA to provide optimal data throughput. All ARINC 664 protocol operations, including VL traffic shaping, redundancy management, and IP fragmentation and reassembly, are handled onboard.


Key Features:

  • 10/100/1000 Mbit/s full-duplex Ethernet links
  • Three configurable traffic classes
    • Standard traffic (IEEE 802.3),
    • Rate-constrained traffic (ARINC 664 p7) and
    • Time-triggered traffic (SAE AS6802)
  • 128 send VLs, 512 receive VLs
  • 1024 send COM ports, 512 receive ports
  • Profiled IP/UDP, sampled and queued ports
  • IP/UDP handled on hardware
  • Diagnosis and status registers
  • DMA controller onboard
  • Conduction-cooled board design
  • High quality configuration tools available
  • Qualified verification & validation tools available

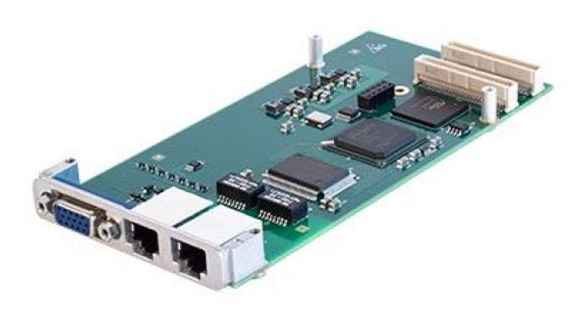

FORM FACTORS: Express Card PMC cPCI 3U PCI Express PCI


Switches:




Key Features:

  • 24+1 full-duplex Ethernet ports (6 x 10/100/1000 Mbit/s; 18 x 10/100 Mbit/s; 1 x Monitoring Port)
  • Flexible physical layer configuration (copper & optical fiber)
  • Three configurable traffic classes
    • Standard Ethernet traffic (IEEE 802.3),
    • Rate-constrained traffic (ARINC 664 p7) and
    • Time-triggered traffic (SAE AS6802)
  • ARINC 664 p7, 665, 615A, SNMP, TFTP and ICMP fully supported
  • 100 % identical technical feature set of corresponding certifiable TTEthernet series production switches
  • Operational under temperature from -40 °C to +70 °C and humidity levels from 25 to 90 %
  • Jitter configuration 0 - 10.24 ms (10 us granularity)
  • TMS 570 CPU for management functions
  • Network-level configuration tools available
  • Table top setup or 19" Rack mountable
